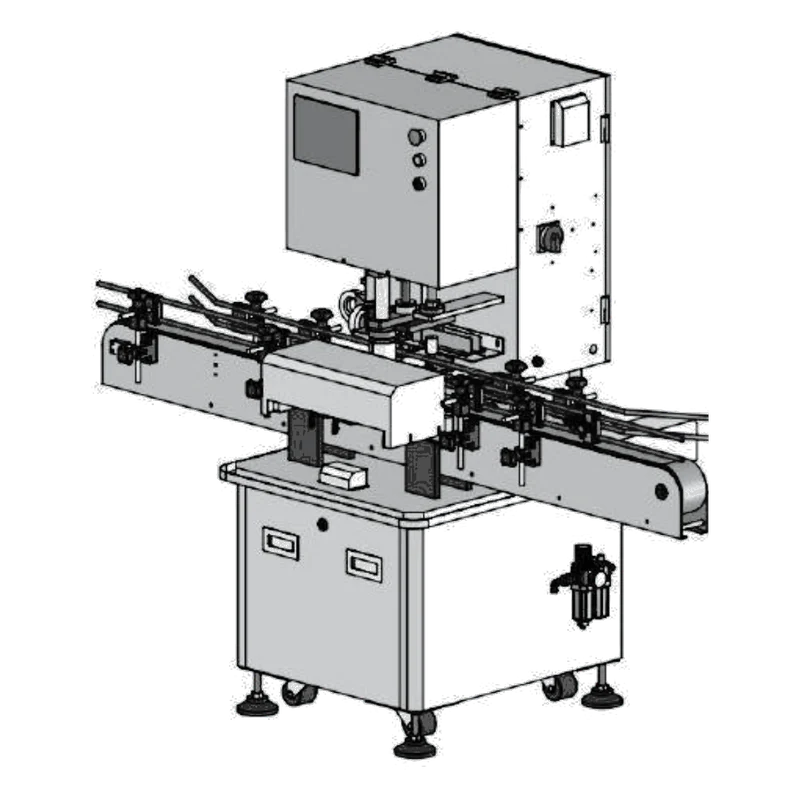

CI-450 automatic cotton inserter

Overview

What it does

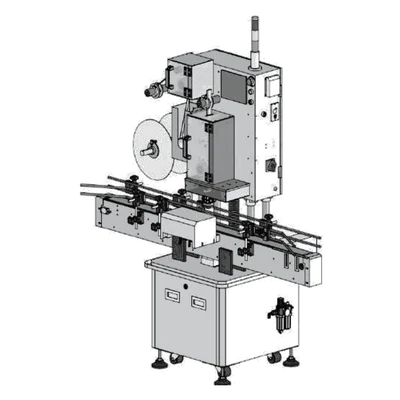

The CI-450 pulls cotton from a roll, cuts it to the set length and pushes the plug down into the neck of the bottle as it indexes past. The length is set on the touch screen, so moving from a 60 ml to a 250 ml bottle is a number rather than a tooling change. Sensors watch the bottle position, the cotton infeed and the refill level, and the machine holds the line rather than running dry. It shares the 850 mm conveyor height with the counter, desiccant inserter, capper and labeler.

Key features

• Cotton length, insert depth and transfer timing all set on the touch screen.
• Fibre optic sensors on the bottle, the cotton infeed and the refill level.
• Insert nozzle height and the conveyor guide rails adjust by hand to the bottle.
• Machine pauses rather than running dry when cotton runs low.
• Delta PLC with a touch screen, so settings are recalled rather than reset by hand.
• Three-colour indicator light and emergency stop in reach of the operator.
• Frame and components in SUS#304 stainless steel and ion anodised aluminium.
• 850 mm conveyor height, matched to every other station in the line.
