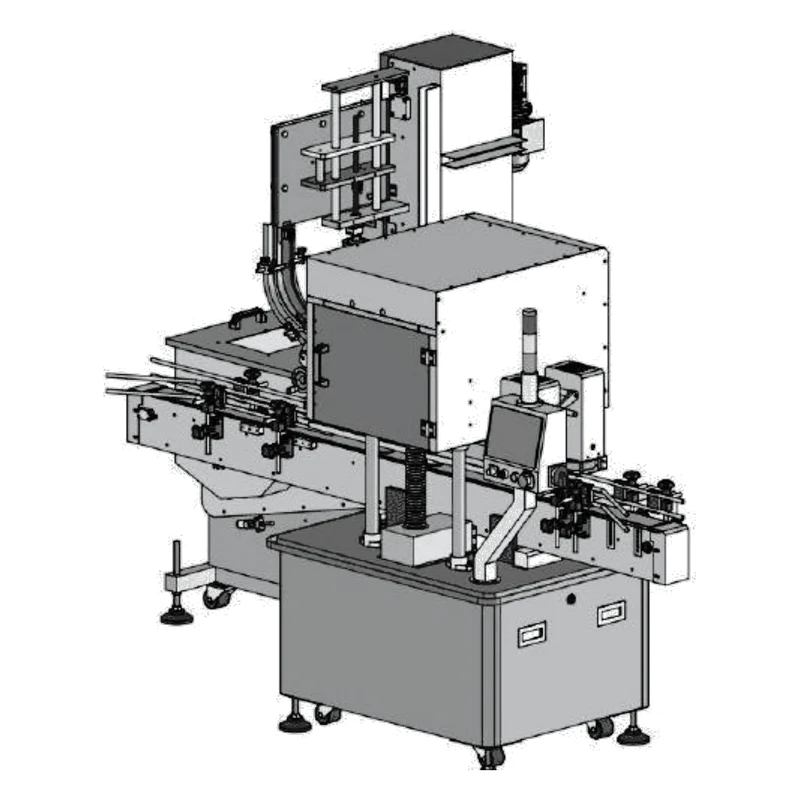

CS-465S inline spindle capper with cap feeder

Overview

What it does

The CS-465S caps bottles on the move. An escalator lifts caps from the bulk hopper, orients them and drops them down the chute onto the bottle, and three pairs of driven spindles close the cap progressively as the bottle passes through. Torque is adjustable and each spindle carries an indicator, so a setting can be read off the machine rather than guessed. It handles screw caps on round and square bottles and runs directly after the inserters in a bottling line.

Key features

• Escalator cap infeed lifts, orients and feeds caps from a bulk hopper.
• Three pairs of capping spindles close the cap progressively, for positive capping.
• Capping torque adjustable, with an indicator on each spindle for repeatable settings.
• Left and right capping torque and speed are set separately on the touch screen.
• Cap tube, capping wheels and guide rails all adjust by hand to the bottle and cap.
• Delta PLC with a touch screen, so settings are recalled rather than reset by hand.
• Three-colour indicator light and emergency stop in reach of the operator.
• Frame and components in SUS#304 stainless steel and ion anodised aluminium.
• 850 mm conveyor height, matched to every other station in the line.
