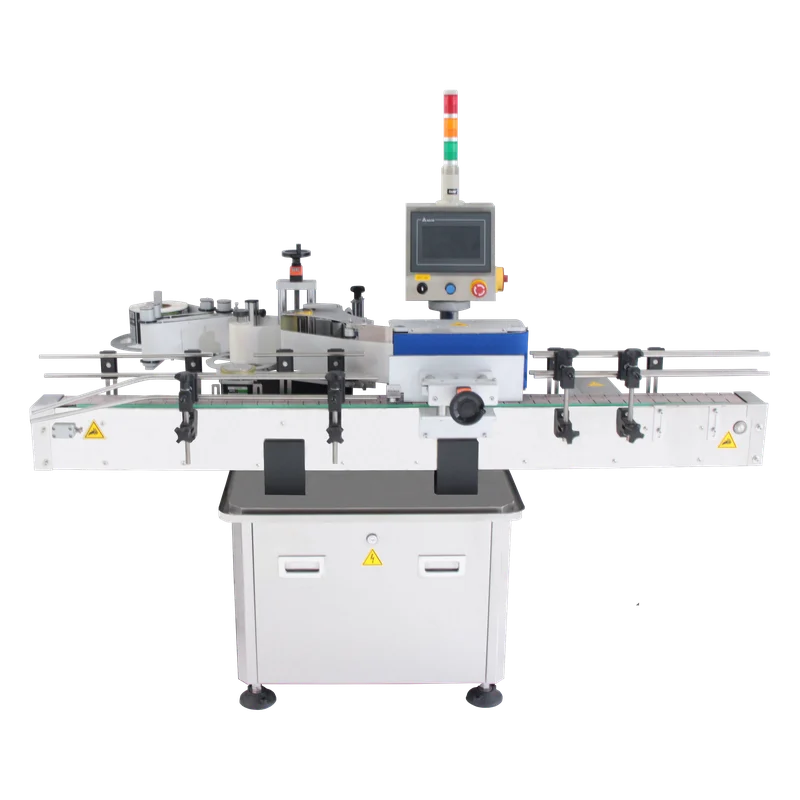

LR-450S automatic round bottle labeler
Wrap labelling for round bottles at 30 to 40 a minute, servo driven, with a wrap station that lays the label flat.
- 30–40/min
- bottles
- 30 m/min
- peeling speed
- 100 mm
- max label width
- EU-based team Ask about European stock availability
- Quote within 24 hours Price, lead time and options
- Delivered to your facility We arrange transport to your site
Overview
What it does
The LR-450S wraps a self-adhesive label around round bottles as they move along the conveyor. A servo motor peels at up to 30 metres a minute and the wrap station rolls the bottle against the label so it lands flat, with no lifted edge at the seam. Height and angle are adjustable, the module design means changeover is quick, and it takes labels up to 100 mm wide on 75 mm core reels. It is the last station in a bottling line, after capping and sealing.
Key features
- Servo driven label peeling, up to 30 metres a minute.
- Wrap station rolls the bottle against the label, so it lies flat with no lifted seam.
- Label height and angle adjustable to the bottle, with labelling and conveyor speed set independently.
- Modular design for quick changeover and easy maintenance.
- Sanitary SUS#304 and anodised aluminium frame.
- Delta PLC with a touch screen, so settings are recalled rather than reset by hand.
- Three-colour indicator light and emergency stop in reach of the operator.
- 850 mm conveyor height, matched to every other station in the line.
Technical specifications
1 model to choose from
Not sure which size fits your batch? Send us your target output and we will recommend one.
| Model | LR-450S |
|---|---|
| Capacity | 30–40 bottles/min (depending on container and label size) |
| Maximum label width (mm) | 100 |
| Reel inner diameter (mm) | 75 |
| Reel outer diameter (mm) | 300 |
| Maximum peeling speed | 30 m/min |
| Drive | Servo motor |
| Control | Delta PLC with touch screen |
| Power required | Single phase 220 V, 50/60 Hz |
| Machine dimensions (mm) | 1857 × 989 × 1304 |
| Conveyor height (mm) | 850 |
| Contact parts | SUS#304 stainless steel and anodised aluminium |
Swipe to see all 1 models
Compare all 5 packaging lines machines
Specifications are indicative and can vary with configuration and options. Final specifications are confirmed in your quote.
Complete bottle packaging line
This machine is one station of eight.
Eight stations on a single 850 mm conveyor. Bottles go in empty at one end and come out counted, filled, plugged, capped, sealed and labelled at the other, without a pair of hands in between.
- Bottle infeed table
- Counting
- Desiccant insertion
- Cotton insertion
- Capping
- Induction sealing
- Shrink banding
- Labelling
Get a price
Quote for the LR-450S automatic round bottle labeler.
Tell us your product and target output. We reply within 24 hours with a price, the right model and options, and a delivery plan to your facility.
- Price for your configuration
- Stock availability and lead time
- Shipping to your facility
- No obligation
