Bottle packaging machines and complete packaging lines
Counting, inserting, capping, sealing and labelling. Buy the one machine you are missing, or the whole bottling line on a single conveyor, matched in speed and quoted together.
TM-426 six-channel tablet and capsule counter
2,000/min capsules
Packaging lines
Packaging lines
DI-450 automatic desiccant inserter
40–50/min bottles
Packaging lines
Packaging lines
CI-450 automatic cotton inserter
In line with the bottle
Packaging lines
Packaging lines
CS-465S inline spindle capper with cap feeder
50/min bottles
Packaging lines
Packaging lines
LR-450S automatic round bottle labeler
30–40/min bottles
Packaging lines

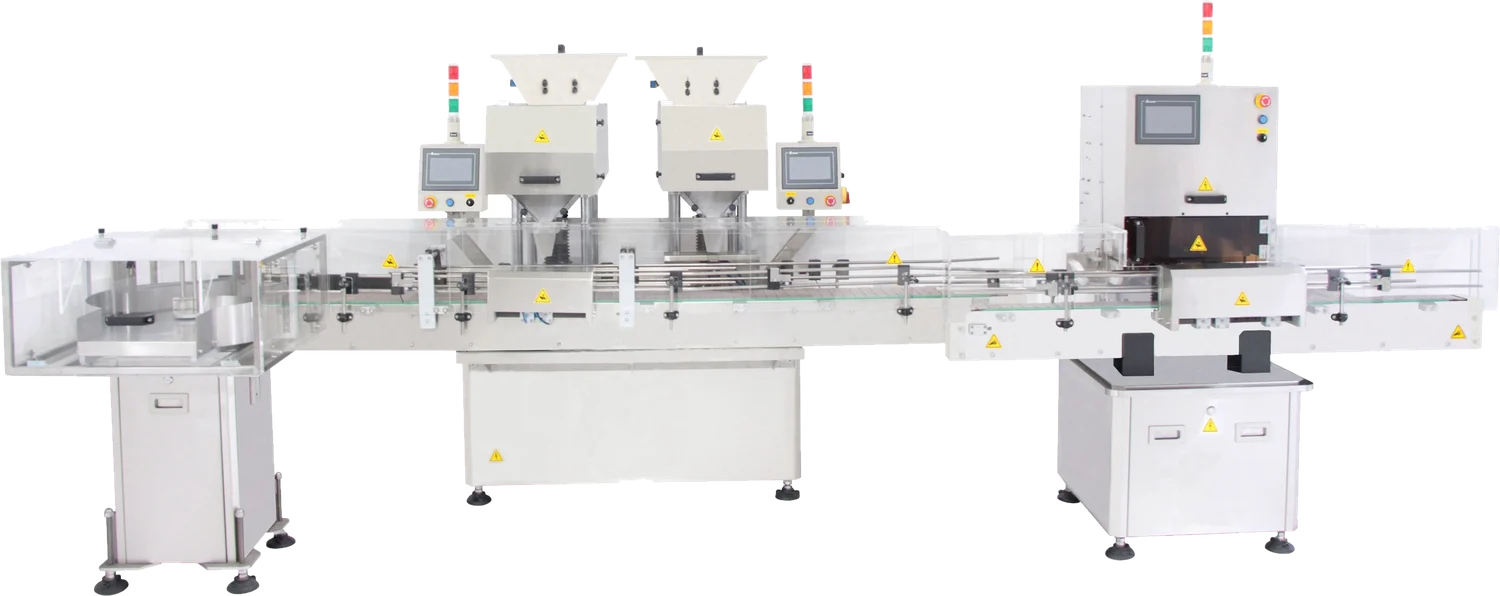

Complete bottle packaging line
Or take the whole line.
Eight stations on a single 850 mm conveyor. Bottles go in empty at one end and come out counted, filled, plugged, capped, sealed and labelled at the other, without a pair of hands in between.
- 14.1 mtotal length
- 850 mmconveyor height
- 40–50bottles a minute
- 8stations in line
-
1 Infeed Rotary table
- 2 Counting TM-426
- 3 Desiccant DI-450
- 4 Cotton CI-450
- 5 Capping CS-465S
-
6 Sealing IS-2000
-
7 Banding HT-100
- 8 Labelling LR-450S
Scroll to see all eight stations
-
01
Bottle infeed table
A rotary table holds the empty bottles and feeds them onto the conveyor at an even rate, so the counter never waits and never jams.
-
02
Counting TM-426
Six tracks count tablets or capsules into each bottle, up to 2,000 pieces a minute, with no change parts between products.
See the machine -
03
Desiccant insertion DI-450
A sachet is cut from the roll and dropped in, only when a bottle is actually under the nozzle.
See the machine -
04
Cotton insertion CI-450
Cotton is measured, cut and pushed into the neck, at a length you set on the screen.
See the machine -
05
Capping CS-465S
Caps are lifted, oriented and fed down the chute, then closed by three pairs of spindles at a set torque.
See the machine -
06
Induction sealing IS-2000
A removable induction head bonds the foil liner to the bottle rim as it passes, on its own 1.5 m conveyor. Supplied with the line.
-
07
Shrink banding HT-100
A heating tunnel shrinks the tamper band over the cap, again on a 1.5 m conveyor. Supplied with the line.
-
08
Labelling LR-450S
The bottle is rolled against the label so it wraps flat, at 30 to 40 bottles a minute.
See the machine
- Stations can be left out. A brand that does not use cotton simply drops that machine and the conveyor closes up.
- Every station shares the same conveyor height and control philosophy, so operators learn one machine and know them all.
- We quote the line as one price, with one lead time and one delivery to your facility.
Compare
The range side by side
Pick by output first, then by the space you have. We confirm the right model in your quote.
| Machine | TM-426 | DI-450 | CI-450 | CS-465S | LR-450S |
|---|---|---|---|---|---|
| Capacity | 1,800–2,000 pieces/min (based on size #1 capsules) | 40–50 bottles/min (subject to bottle type and size) | 40–50 bottles/min (subject to bottle type and size) | 50 bottles/min | 30–40 bottles/min (depending on container and label size) |
| Power required | 220 V, 50/60 Hz | Single phase 220 V, 50/60 Hz | Single phase 220 V, 50/60 Hz | Single phase 220 V, 50/60 Hz | Single phase 220 V, 50/60 Hz |
| Machine dimensions (mm) | 3094 × 2038 × 1716 | 1841 × 881 × 2072 | 1981 × 837 × 1587 | 2548 × 1406 × 1954 | 1857 × 989 × 1304 |
Swipe to compare all 5 machines
Not sure which one?
Tell us three things. We will size it for you.
- Your materialPowder, granule, extract, tablet or capsule, and anything sticky, heat-sensitive or hygroscopic.
- Your batch or outputkg per batch or kg per hour, today and where you want to be in two years.
- Your siteDelivery country, available space and power supply.
