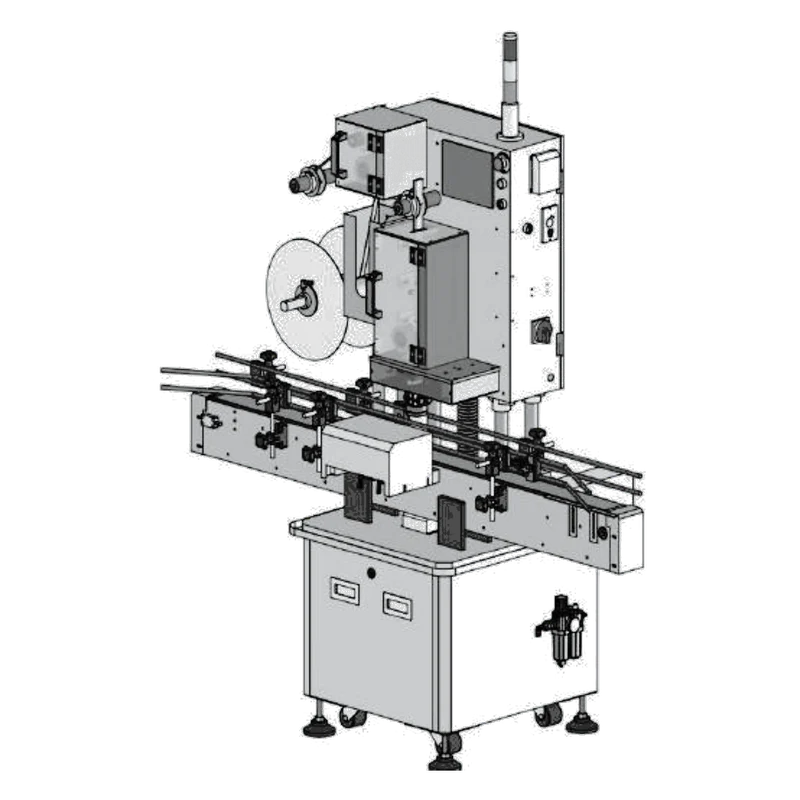

Image for illustration DI-450 automatic desiccant inserter
Cuts and drops a desiccant sachet into 40 to 50 bottles a minute, straight from the roll.
- 40–50/min
- bottles
- Roll fed
- desiccant
- 4
- bottle shapes
- EU-based team Ask about European stock availability
- Quote within 24 hours Price, lead time and options
- Delivered to your facility We arrange transport to your site
Overview
What it does
The DI-450 takes desiccant on a roll, cuts each sachet and drops it into the bottle as it passes. A step motor drives the feed, so the cut length stays consistent, and a sensor confirms a container is in position before the gate opens, which means no sachet is dropped onto the conveyor. It runs round, flat round, square and flat square bottles in glass, PET or HDPE, and sits between the counter and the capper on the same conveyor.
Key features
- Step motor driven feed, for a consistent cut length sachet after sachet.
- Runs round, flat round, square and flat square bottles in glass, PET or HDPE.
- Pneumatic gating with container detection: no bottle, no sachet.
- Roll change is a threaded path with eight marked rollers, done in minutes.
- Delta PLC with a touch screen, so settings are recalled rather than reset by hand.
- Three-colour indicator light and emergency stop in reach of the operator.
- Frame and components in SUS#304 stainless steel and ion anodised aluminium.
- 850 mm conveyor height, matched to every other station in the line.
Technical specifications
1 model to choose from
Not sure which size fits your batch? Send us your target output and we will recommend one.
| Model | DI-450 |
|---|---|
| Capacity | 40–50 bottles/min (subject to bottle type and size) |
| Bottle shapes | Round, flat round, square, flat square |
| Desiccant | Roll fed, cut in line |
| Control | Delta PLC with touch screen |
| Power required | Single phase 220 V, 50/60 Hz |
| Power consumption | 0.64 kW |
| Air requirement | 90 psi |
| Machine dimensions (mm) | 1841 × 881 × 2072 |
| Conveyor height (mm) | 850 |
| Contact parts | SUS#304 stainless steel and ion anodised aluminium |
Swipe to see all 1 models
Compare all 5 packaging lines machines
Specifications are indicative and can vary with configuration and options. Final specifications are confirmed in your quote.
Complete bottle packaging line
This machine is one station of eight.
Eight stations on a single 850 mm conveyor. Bottles go in empty at one end and come out counted, filled, plugged, capped, sealed and labelled at the other, without a pair of hands in between.
- Bottle infeed table
- Counting
- Desiccant insertion
- Cotton insertion
- Capping
- Induction sealing
- Shrink banding
- Labelling
Get a price
Quote for the DI-450 automatic desiccant inserter.
Tell us your product and target output. We reply within 24 hours with a price, the right model and options, and a delivery plan to your facility.
- Price for your configuration
- Stock availability and lead time
- Shipping to your facility
- No obligation
